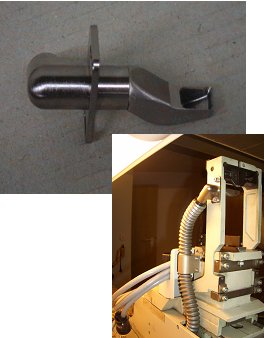

Suction nozzle

Our suction nozzles are designed to function optimally with type A, B, C and D Hell-engraving-heads. The suction nozzles are produced using CNC machines guaranteeing high product quality. The large suction vent is designed to vacuum copper flakes from a large area around the cutting diamond and the edges of the suction opening are tapered to maximize their removal. The walls of the suction nozzle are especially thick in areas prone high wear. The suction nozzle is hardened and nickel plated ensuring low wear and long life.

As a special order, these nozzles are also available for the engraving slide of the MDC Daewyler system The vacuum tubes are often prematurly damaged or destroyed.

Prices on application
